FRAMELESS STEEL BUILDINGS

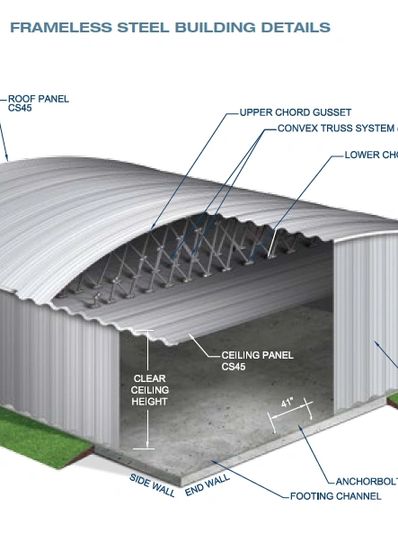

BEHLEN FRAMELESS steel buildings are constructed with engineered panel system, eliminating the need for structural steel. This unique system allows to offer low cost, energy efficient solutions.
Buildings can offer obstruction-free spans of up to 95 m (313’) completely independent of structural elements such as columns and rafters. This provides our customers with unparalleled flexibility.
The lack of structural steel helps give our buildings an insulation advantage. Inexpensive batt insulation is installed easily to the interior with insulation supports, which minimize energy loss caused by thermal bridging. The wall system also accepts a variety of types of insulation from spray-on to strapping and batts.
PRE-FAB BUILDING SYSTEM
We manufacture and supply worldwide prefabricated - Foldable, Expandable and Flat Pack houses from our RAPID BUILD facility in New Zealand and the ARTSPAN facility in Canada.
The main advantage of our prefabricated RAPID BUILD container houses is their rapid installation speed, high mobility, and flexibility in adapting to various functional tasks such as housing, dormitory, medical facility, construction site offices, showroom, etc.
• Fast assembly: it takes only 45 minutes to assemble one foldable unit
• Environmentally friendly: Reusable, cost saving and environmentally friendly.
• Pre-assembled 95% before leaving the factory, ensuring fast and easy assembly.
• Can be relocated frequently, regardless of the size of the building
Unique, structural, insulated steel panels of ARTSPAN keep warm in winter and cool in summer. They are resistant to fire, mold and rodents.
The foam core and interior and exterior pre-painted steel sheets combine to create a well-insulated, self-supporting, maintenance-free building envelope solution. The system uses these panels to form the floor, wall and roof systems for a variety of residential building types as a permanent or temporary building solution.
GRAIN RINGS AND TARPS

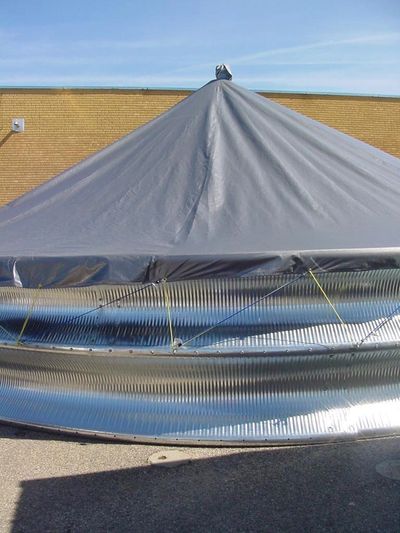

MERIDIAN Corrugated Grain Ring storages are professionally engineered and fully prefabricated for a wide range of storage different tapes of grain and corn. Our Meridian Corrugated Grain rings offer, versatile and economical options for a wide range of farms. They are easily transported and installed for ultimate flexibility in meeting your grain storage needs.
Low cost per bushel Corrugated Grain Rings are ideal fortemporary or intermediate grain storage solutions. Grain rings are self-supporting and designed to withstand large avolume of crop. Established during bumper-crop years, intermediategrain storage practice solves the dilemma of producing more crops thanstorage allows. The ability to safely store grain outdoors for temporarypurposes is the answer to your modern operating needs. Don’t let fullsilos stop you from enjoying a record yield, get help from the grain ring.
DEEP CORRUGATED STRUCTURAL PLATE
Canadian ARMTEC infrastructure technology:

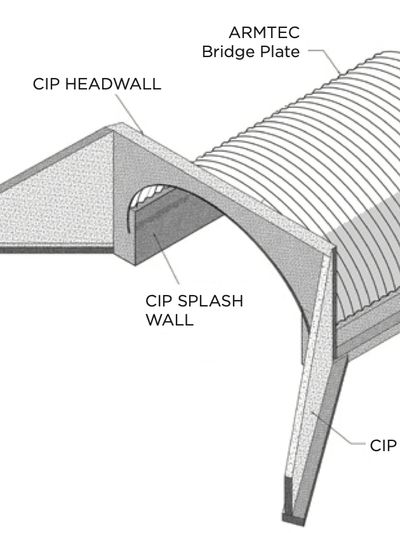

Bridge-Plate Deep Corrugated Structural Plate (DCSP) is one of the strongest structural plate products on the market today with the deepest corrugation profile possible. It allows an economical construction of long span soil-steel structures in arch, ellipse, round and box-culvert shapes. Configurations are pre-engineered to make the selection process quick and easy. Standard spans range from 4m to 18m, with longer custom designs available.
Multi Plate is a versatile and economical bridge and culvert product that can be custom designed for almost any application. It is most commonly used as the steel element of a buried soil-steel structure, but it can also be part of free-standing structures such as rock fall protection, conveyer tunnels, caissons and more. Standard spans range up to 8,5m, with longer custom designs available.
Tunnel Liner Plate is one of the most versatile segmental corrugated steel plate systems on the market today. Designed specifically for lining soft ground tunnels and relining existing conduits under highways and railroads, its applications extend to caissons, vertical shafts, mine entries and much more.
PRE-FABRICATED MODULAR STEEL BRIDGE
Canadian ARMTEC infrastructure technology:

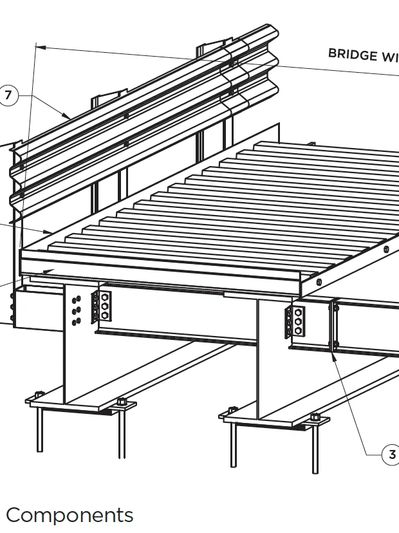

Bridge In A Box is an engineered, pre-fabricated modular steel bridge that is delivered to site in single or double lane configurations and spans from 6m to 24.5m. The customizable Bridge In A Box design is complemented by standard steel posts with W-Beam or Thrie Beam guardrail for low volume roads. The open span ensures exceptional hydraulics with little impact on the stream environment. Bridge In A Box is an ideal solution for rural, forestry, and remote locations, and complies with the Canadian Highway Bridge Design Code (CHBDC) for pedestrian and highway live loads.
ARCHWALL STEEL BUILDINGS

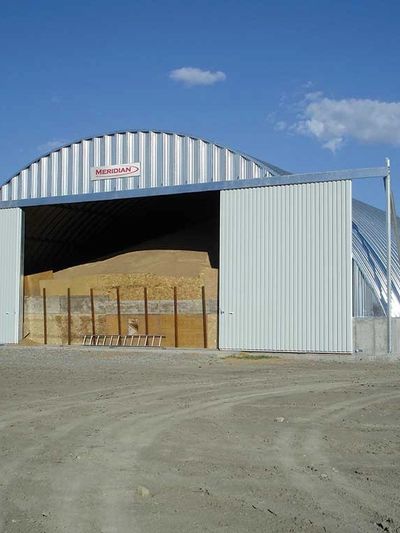

ArchWall Steel Buildings by canadian manufacturer MERIDIAN are good choice for versatile, custom engineered storage. Using 100% steel construction and easy to assemble and expand, the ArchWall building can store it all: Vegetables, Hay, Grain, Fertilizer, Equipment & more.
ArchWall Steel Buildings buildings are anchored to the foundation using a die-formed footing channel, the most practical method available, making construction easier while allowing for future expansion. This unique system also supports the use of larger wall and roof panels, ensuring watertight seams and maintenance-free performance.
Meridian’s ArchWall Buildings offer vegetable producers efficient, versatile and economical storage. Meridian ArchWall Buildings are available in a single building or shared double-building design. Standard ArchWall Buildings single buildings are available in sizes up to 250,000 cwt.
For producers who require flexible storage, Meridian’s shared double-buildings can be designed to store a variety of vegetables in each building. The double-building design features a shared external plenum with capacities up to 500,000 cwt., suitable for large or small operations.
Meridian ArchWall Buildings offer livestock producers high quality buildings that can be used for shelter, hay storage, treatment facilities and more. The durable and sturdy designs ensure generations of use on your farm.
SPORTS TECHNOLOGIES

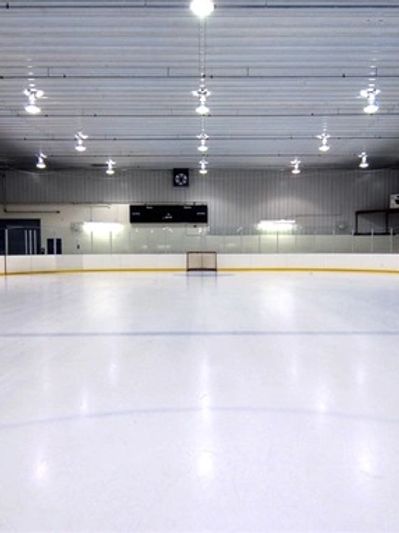

Innovative design and engineering of our sports facilities is supported by the world leaders in manufacturing of various sports technologies. Between the Rhino Turf surfaces for our indoor soccer and rugby halls, Graboplast professional sport parquets, The Glice Swiss Engineered Synthetic Ice systems, famous Cimco Sustainable Thermal Solutions and Zamboni Ice Resurfaces for our indoor Ice Hockey and Figure Skating Rinks, world leaders in swimming pool technologies Hayward, Pentair and Jandy that are our proven suppliers for recreational and professional swimming pool projects – we always provide our customers worldwide with the leading cutting edge equipment, exceptional performance and care to the environment
STEEL-CONCRETE SHELTER

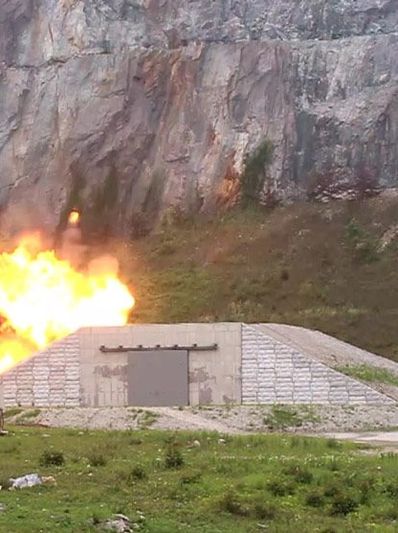

Steel-Concrete Shelter (SCS) from Corrugated Structural Plate (CSP) has been utilized for decades in various protective structures deployed by NATO countries to safeguard critical military and civilian infrastructure.
SCS consist of an arch-shaped overlap of one or two CSP by ARMTEC, with up to a 1.5 m reinforced concrete layer filling. Optionally, the CSP can be covered with "protective ribs" - 0.5m thick steel boxes filled with compacted sand. Assembled structure can be installed on reinforced concrete walls/foundations or durectly on the ground.
When comparing protective structures made of CSP with concrete ones, concrete structures are prone to cracking or collapseing depending on the impact energy of the explosion, while CSP structures only deform. This means that concrete structures are more likely to cause damage due to internal fragments, whereas CSP structures have minimal or no secondary danger from fragmentation.
